Oxidation of Benzyl Alcohols to Benzaldehydes
with Oxone and Sodium Bromide

Bon-Suk Koo, Chang Keun Lee, Kee-Jung Lee
Synth. Commun. 32(14), 2115-2123 (2002)

HTML by Rhodium

Abstract

Reaction of benzyl alcohols with Oxone and sodium bromide in aqueous acetonitrile gave the corresponding benzaldehydes in excellent yields. However, electron-rich benzyl alcohols afforded ring bromination products via bromodecarbonylation of the resulting benzaldehydes.

The selective oxidation of benzylic alcohols to benzaldehydes is a transformation of considerable importance in organic synthesis. Whilst numerous reagents have been developed to effect this process, many of them use greater than stoichiometric quantities of toxic heavy metals or co-oxidants which severely handicap their applicability to large scale industrial processes1,2. Also, the oxidation of organic compounds by hypohalite salts or halogen is well known method in organic synthesis3. Especially, oxidation of primary alcohols to aldehydes with hydrogen peroxide using methyltrioxorhenium and bromide ions as cocatalysts4, and with oxoammonium salt and bromide ions5 have been described.

Recent reports have dealt with the use of a triple salt of potassium peroxymonosulfate, potassium hydrogen sulfate, and potassium sulfate, which is commercially available as Oxone (2KHSO5·KHSO4·K2SO4), can be used for the oxidation of alkenes6, arenes7, amines8, imine9, sulfides10, selenides11, α-amino acids12, and acetals13. Also, there are reports in the literature, where Oxone is a useful oxidation reagent of alcohols and aldehydes. Examples include the conversions of 2-propanol to acetone6, ethanol to ethyl acetate6, and benzaldehyde to benzoic acid6,14. Another example is the oxidation of secondary alcohols to ketones in the presence of wet-aluminium oxide in aprotic solvents15. Also, Bolm and co-workers have demonstrated that the combination of TEMPO/Oxone/Bu4NBr is an effective system for the oxidation of alcohols to aldehydes and ketones, including benzylic ones16. Moreover, the use of Oxone and aqueous sodium halides was conducted as a convenient halogenating reagent to achieve oxidation of α,β-enones17, bromination of pyrimidines18, and halogenation of toluene6.

In previous paper, we have shown that sodium bromide combined with Oxone serves as effective bromodecarboxylation reagent of various cinnamic acids19 and halogenation of aromatic methyl ketones20. In the course of our study to extend the scope of the Oxone/NaBr reagent in organic synthesis, we have found that this reagent facilitates the oxidation of benzylic alcohols to benzaldehydes satisfactorily.

Optimization of the reaction conditions revealed that simple stirring a solution of benzyl alcohol (1 eqv), Oxone (1 eqv) and sodium bromide (2 eqv) in a 1:1 mixture of CH3CN/H2O effected the formation of benzaldehyde in 87% isolated yield within 3 h. However, in the absence of sodium bromide, the reaction did not proceed at all in 24 h at r.t. Further studies showed that this oxidation method could be applied to a wide range of benzylic alcohols and representative primary and secondary alcohols as shown in Table 1. They are all known compounds and are identified by their IR, 1H NMR and mass spectral data.

Scheme 1

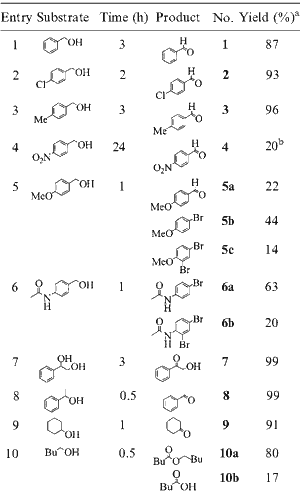

Table 1

Oxidation of Alcohols with Oxone and NaBr


A plausible mechanism of the oxidation is shown in Scheme 1 based on literatures. The oxidation of bromide ion by peroxymonosulfate ion would give the hypobromous acid16,21 and subsequent oxidation of alcohols affords aldehydes and ketones.

The presence of electron-donating groups in the aromatic ring has little influence on the oxidation rates but these are markedly lowered by introducing a strong electron-acceptor group. Thus, p-nitrobenzyl alcohol was oxidized to aldehyde in only 20% yield over 24 h. Also, the reaction was unsuccessful for electron-rich arene such as p-methoxybenzyl alcohol, which presumably suffered complications due to competing bromodecarbonylation of the resulting p-anisaldehyde which was accompanied by the formation of 4-bromoanisole (44%) and 2,4-dibromoanisole (14%)22. Similarly, p-acetamidobenzyl alcohol gave bromodecarbonylation products, 4-bromoacetanilide (63%) and 2,4-dibromoacetanilide (20%)22. In the oxidation of 1-phenyl-1,2-ethanediol, the secondary benzylic alcoholic function was oxidized with high selectivity to form 2-hydroxyacetophenone in 99% yield. The oxidation of secondary alcohols afforded the corresponding ketones in excellent yields. But, primary alcohol such as 1-pentanol was converted mainly into the dimeric ester, pentyl valerate, presumably via hemiacetal intermediate23.

In conclusion, we developed a simple oxidation method of benzyl alcohols to benzaldehydes with Oxone/NaBr in aqueous acetonitrile under the mild conditions. This method provides an alternative, facile preparation of benzaldehydes, since Oxone and sodium bromide are cheap, nontoxic, stable, and easy to handle.

Experimental

  • 1: Liquid (Lit.24 bp 178?C)
  • 2: mp 47?49?C (Lit.24 47.5?C)
  • 3: Liquid (Lit.24 bp 204?205?C)
  • 4: mp 103?105?C (Lit.24 106?C)
  • 5a: Liquid (Lit.24 bp 249.5?C)
  • 5b: Liquid (Lit.24 bp 215?C)
  • 5c: mp 61?62?C (Lit.25 61?63?C)
  • 6a: mp 165?167?C (Lit.24 168?C)
  • 6b: mp 142?143?C (Lit.26 144.7?C)
  • 7: mp 79?81?C (petroleum ether)
        (Lit.24 90?C)
  • 8: Liquid (Lit.24 bp 202.6?C)
  • 9: Liquid (Lit.24 bp. 155.6?C)
  • 10a: Liquid (Lit.24 bp. 203.7?C)
  • 10b: Liquid (Lit.24 bp. 186?C)

Melting points were determined in open capillaries with an Electrothermal melting point apparatus and are uncorrected. Progress of reactions were followed by TLC using silica gel with fluorescent indicator coated on aluminium sheets.


General Procedure for the Oxidation of
Alcohols with Oxone and Sodium Bromide

To a stirred solutions of alcohols (3 mmol) in aqueous CH3CN (30 mL, 1:1 by volume) was added NaBr (0.62 g, 6 mmol) and Oxone (1.84 g, 3 mmol). Reactions were continuously monitored by thin-layer chromatography and stirred at r.t. for the time indicated in Table 1. The reaction mixture was quenched with aqueous sodium thiosulfate, and extracted with ether (3?30 mL). The combined organic layers were washed with water, dried over anhydrous MgSO4, filtered, and concentrated in vacuo. The residue was chromatographed on a silica gel column and eluted with hexane?EtOAc 10:1 to give the products (Table 1).

References

  1.
    1. Hollingworth G.J. Comprehensive Organic Functional Group Transformations, Katritzky A.R., Meth-Cohn O., Rees C.W., Pattenden G. Elsevier Science Ltd., Oxford, 1995, Vol. 3 pp. 81?109.
    2. Larock R.C. Comprehensive Organic Transformations, VCH Publishers, Inc., New York, 1989, pp. 604?614.
  2.
    1. Barrett A.G.M., Braddock D.C., McKinnell R.M., Waller F. J., Ytterbium(III) Triflate as a Recyclable Catalyst for the Selective Atom Economic Oxidation of Benzyl Alcohols to Benzaldehydes, Synlett, (9), 1489?1490 (1999)
    2. Sato K., Takagi J., Aoki M., Noyori R., Hydrogen Peroxide Oxidation of Benzylic Alcohols to Benzaldehydes and Benzoic Acids Under Halide-Free Conditions, Tetrahedron Lett., 39(41), 7549?7552 (1998)
    3. Zondervan C., Hage R., Feringa B.L., Selective Catalytic Oxidation of Benzylic Alcohols to Benzaldehydes with a Dinuclear Manganese(IV) Complex, Chem. Commun., (5), 419?420 (1997)
    4. Barhate N.B., Sasidharan M., Sudalai A., Wakharkar R.D., Selective Catalytic Oxidation of Benzylic Alcohols to the Corresponding Carbonyl Compounds with TBHP over CrS-2, Tetrahedron Lett., 37(12), 2067?2070 (1996)
    5. Feldberg L., Sasson Y., Copper-Catalysed Oxidation of Hydroxy Compounds by tert-Butyl Hydroperoxide Under Phase-Transfer Conditions, Chem. Commun., (15), 1807 (1994)
    6. Kaneda K., Kawanishi Y., Teranishi S., Zr-Catalyzed Oxidation of Alcohols to Aldehydes in the Presence of tBuOOH. High Reactivity for Primary and Allylic Hydroxyl Functions, Chem. Lett., (9), 1481?1482 (1984)
    7. Ogura F., Otsubo T., Ariyoshi K., Yamaguchi H., bis(p-Methoxyphenyl)selenoxide as a Cooxidant for Selenium Dioxide Oxidation of Benzyl Alcohols, Chem. Lett., (12), 1833?1834 (1983)
    8. Kanemoto S., Oshima K., Matsubara S., Takai K., Nozaki H., Transition-Metal Catalyzed Oxidation of Alcohols to Aldehydes and Ketones by Means of Me3SiOOSiMe3, Tetrahedron Lett., 24(21), 2185?2188 (1983)
    9. M?ller P., Godoy J., Catalyzed Oxidation of Alcohols and Aldehydes with Iodosylbenzene, Tetrahedron Lett., 22(25), 2361?2364 (1981)
  3.
    1. Stevens R.V., Chapman K.T., Weller H.N., Convenient and Inexpensive Procedure for Oxidation of Secondary Alcohols to Ketones, J. Org. Chem., 45(10), 2030?2032 (1980)
    2. Stevens R.V., Chapman K.T., Further Studies on the Utility of Sodium Hypochlorite in Organic Synthesis. Selective Oxidation of Diols and Direct Conversion of Aldehydes to Esters, Tetrahedron Lett., 23(45), 4647?4650 (1982)
    3. Nwaukwa S.O., Keehn P.M., The Oxidation of Alcohols and Ethers Using Calcium Hypochlorite [Ca(OCl)2], Tetrahedron Lett., 23(1), 35?38 (1982)
    4. Palou J., Oxidation of Some Organic Compounds by Aqueous Bromine Solutions, Chem. Soc. Rev., 23(5), 357?361 (1994)
  4. Espenson J.H., Zhu Z., Zauche T.H., Bromide Ions and Methyltrioxorhenium as Cocatalysts for Hydrogen Peroxide Oxidations and Brominations, J. Org. Chem., 64, 1191?1196 (1999)
  5. Anelli P.L., Biffi C., Montanari F., Quici S., Fast and Selective Oxidation of Primary Alcohols to Aldehydes or to Carboxylic Acids and of Secondary Alcohols to Ketones Mediated by Oxoammonium Salts Under Two-Phase Conditions, J. Org. Chem., 52(12), 2559?2562 (1987)
  6. Kennedy R.J., Stock A.M., The Oxidation of Organic Substances by Potassium Peroxymonosulfate, J. Org. Chem., 25, 1901?1906 (1960)
  7. Jeyaraman R., Murray R.W., Production of Arene Oxides by the Caroate?Acetone System (Dimethyldioxirane),
    J. Am. Chem. Soc., 106, 2462?2463 (1984)
  8. Zabrowski D.L., Moormann A.E., Beck K.R.J., The Oxidation of Aromatic Amines in the Presence of Electron-rich Aromatic Systems, Tetrahedron Lett., 29, 4501?4504 (1988)
  9. Davis F.A., Chattopadhyay S., Towson J.C., Lal S., Reddy T., Chemistry of Oxaziridines. 9. Synthesis of 2-Sulfonyl- and 2-Sulfamyloxaziridines Using Potassium Peroxymonosulfate (Oxone), J. Org. Chem., 53, 2087?2089 (1988)
  10. Greenhalgh R.P., Selective Oxidation of Phenyl Sulphides to Sulphoxides or Sulphones Using Oxone and Wet Alumina, Synlett, (3), 235?236 (1992)
  11. Ceccherelli P., Curini M., Epifano F., Marcotullio M.C., Rosati O., Oxone Oxidation of Selenides: A Mild and Efficient Method for the Preparation of Selenones, J. Org. Chem., 60(26), 8412?8413 (1995)
  12. Paradkar V.M., Latham T.B., Demko D.M., Oxidative Decarboxylation of α-Amino Acids with in-situ Generated Dimethyl Dioxirane, Synlett, (10), 1059?1060 (1995)
  13. Curini M., Epifano F., Marcotullio M.C., Rosati O., Oxone: A Convenient Reagent for the Oxidation of Acetals, Synlett, (6), 777?779 (1999)
  14.
    1. Webb K.S., Ruszkay S.J., Oxidation of Aldehydes with Oxone in Aqueous Acetone, Tetrahedron 54(3/4), 401?410 (1998)
    2. Baumstark A.L., Beeson M., Vasquez P.C., Dimethyldioxirane: Mechanism of Benzaldehyde Oxidation, Tetrahedron Lett., 30(41), 5567?5570 (1989)
  15. Hirano M., Oose M., Morimoto T., Oxidation of sec-Alcohols with Oxone in Aprotic Solvents in the Presence of Wet-Aluminium Oxide, Bull. Chem. Soc. Jpn., 64(3), 1046?1047 (1991)
  16. Bolm C., Magnus A.S., Hilderbrand J.P., Catalytic Synthesis of Aldehydes and Ketones Under Mild Conditions Using TEMPO/Oxone, Org. Lett., 2(8), 1173?1175 (2000)
  17. Dieter R.K., Nice L.E., Velu S.E., Oxidation of α,β-Enones and Alkenes with Oxone and Sodium Halides: A Convenient Laboratory Preparation of Chlorine and Bromine, Tetrahedron Lett., 37(14), 2377?2380 (1996)
  18. Ross S.A., Burrows C.J., Bromination of Pyrimidines Using Bromide and Monoperoxysulfate: A Competition Study Between Cytidine, Uridine and Thymidine, Tetrahedron Lett., 38(16), 2805?2808 (1997)
  19. You H.-W., Lee K.-J., Halodecarboxylation of α,β-Unsaturated Carboxylic Acids Bearing Aryl and Styrenyl Group at β-Carbon with Oxone and Sodium Halide, Synlett, (1), 105?107 (2001)
  20. Kim E.-H., Koo B.-S., Song C.-E., Lee K.-J., Halogenation of Aromatic Methyl Ketones Using Oxone and Sodium Halide, Synth. Commun., 31(23), 3627?3632 (2001)
  21. Montgomery R.E., Catalysis of Peroxymonosulfate Reactions by Ketones, J. Am. Chem. Soc., 96(25), 7820?7821 (1974)
  22. Koo B.-S., Kim E.-H., Lee K.-J., Bromodecarbonylation and Bromodecarboxylation of Benzaldehydes and Benzoic Acids with Oxone and Sodium Bromide, Synth. Commun., 31(15), (2001) in press.
  23. Takase K., Masuda H., Kai O., Nishiyama Y., Sakaguchi S., Ishii Y., Oxidative Esterification of Primary Alcohols by NaBrO3/NaHSO3 Reagents in Aqueous Medium, Chem. Lett., (10), 871?872 (1995)
  24. CRC Handbook of Chemistry and Physics; 68th Ed., Weast R.C., Astle M.J., Beyer W.H. CRC Press, Inc., Florida, 1987, pp. C42?C553.
  25. Hazlet S.E., Dornfeld C.A., The Reduction of Aromatic Nitro Compounds with Activated Iron, J. Am. Chem. Soc., 66(10), 1781?1782 (1944)
  26. Owen G., Freezing-Point Curves of Binary Mixtures of Some Substituted Acetanilides, J. Chem. Soc., 123, 3392?3397 (1923)
